Retail Next Extractor Documentation

Integration Overview

Retail Next provides information on visitors to your brick & mortar stores so that you can understand foot traffic and in-store conversion.

The Daasity<>Retail Next integration provides data on the flow of customers in and out of retail locations. Data is reported at an hourly level.

Key Topics

Integration Availability

This integration is available on

  • Pro

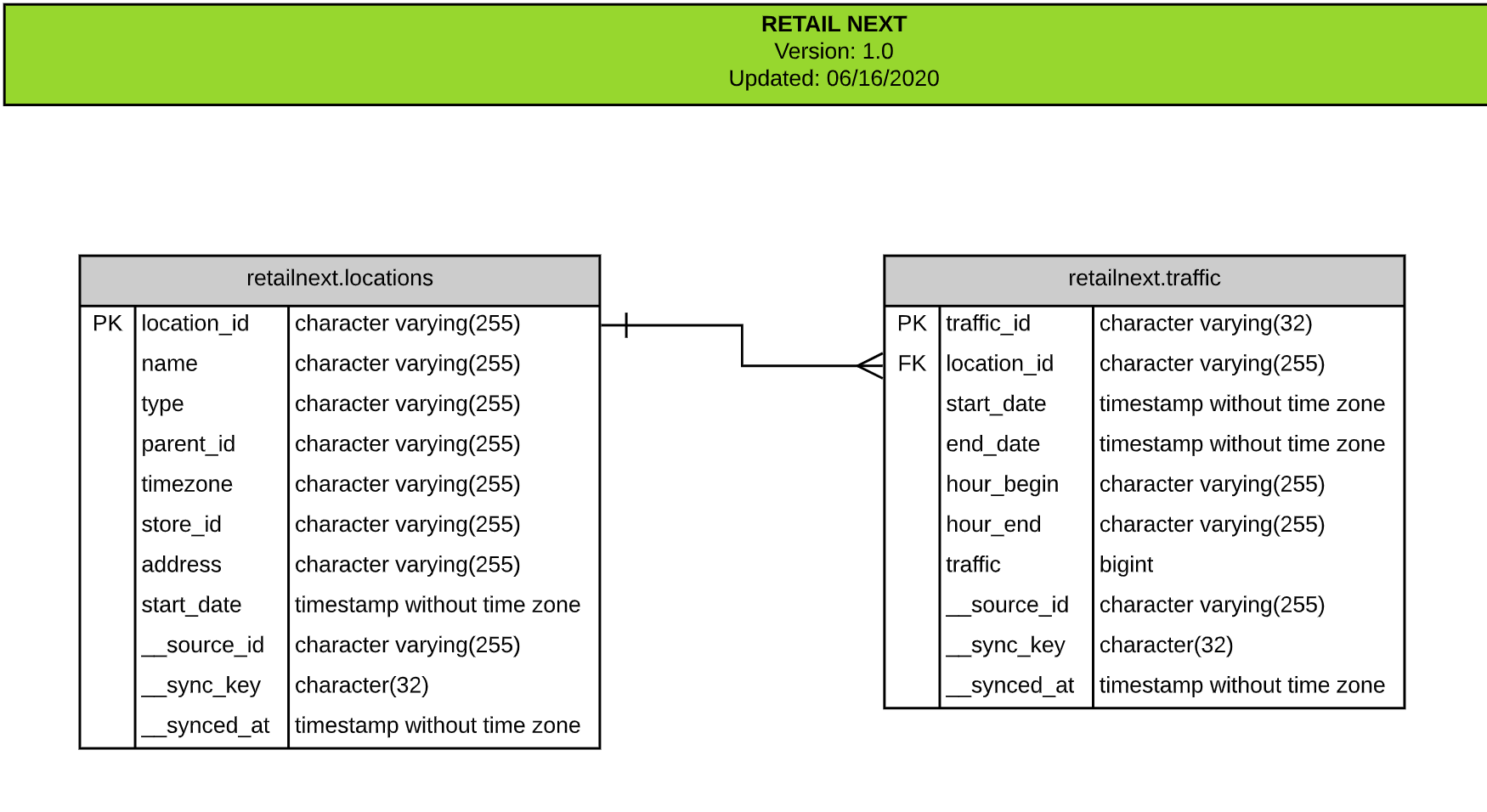

ERD

Endpoints



Locations API https://<susbcription>.api.retailnext.net/v1/location
Datamine API (Traffic) https://<subscription>.api.retailnext.net/v1/datamine

Locations

JSON Element

Database Column

id

location_id

name

name

type

type

parent_id

parent_id

timezone

timezone

store_id

store_id

address.street_address

address

comp_start_date

start_date


Incremental data extraction.

Business Rule

Value

Load type

TRUNCATE & REPLACE

Extraction Frequency

Daily


Sync Key definition:


MD5 Hash of the following fields:

  • location_id
  • __source_id

Traffic Table

JSON Element

Database Column

MD5(location_id ||’:’||start_date ||’:’||hour_begin)

traffic_id

locations (location_id being passed in the API request)

location_id

date_ranges.first_day (first day being passed in the API request)

start_date

date_ranges.last_day (last day being passed in the API request)

end_date

data.group.start

hour_begin

data.group.finish

hour_end

data.value

traffic


Incremental data extraction.

Business Rule

Value

Load type

Upsert

Extraction Frequency

Daily

API Example

{"locations": ["location_id"], "metrics": ["traffic_in"], "date_ranges": [{"first_day": "2020-01-15", "last_day": "2020-01-15"}], "time_ranges": [{"type": "store_hours"}], "group_bys": [ {"group": "time", "value": 1, "unit": "hours"} ]}


Sync Key definition:


MD5 Hash of the following fields:

  • traffic_id
  • __source_id
